The Armidale-class patrol boats are a formidable and versatile class of vessels serving in the Royal Australian Navy (RAN). Commissioned in the early 2000s, these patrol boats were designed to replace the aging Fremantle-class vessels. They have since become a crucial component of Australia’s maritime security strategy, particularly in terms of border protection and surveillance operations. Named after regional cities and towns in Australia, each ship in this class embodies a unique connection to the country’s vast geography.

Background and Development

The need for the Armidale-class patrol boats arose from the increasing demands on the RAN to protect Australia’s extensive maritime borders, which include a vast Exclusive Economic Zone (EEZ) rich in resources and a significant target for illegal activities such as smuggling, illegal fishing, and unauthorized arrivals. To meet these challenges, the RAN sought a modern and capable class of patrol boats that could operate effectively across Australia’s diverse and often challenging maritime environment.

Austal, an Australian shipbuilding company based in Henderson, Western Australia, was awarded the contract to design and construct these new vessels. The first boat, HMAS Armidale, was commissioned in June 2005, marking the beginning of a new era in Australian naval patrol capabilities.

Design and Features

The Armidale-class patrol boats are designed to offer a combination of speed, endurance, and flexibility. They measure 56.8 meters in length, have a beam of 9.7 meters, and a draft of 2.7 meters. With a full load displacement of 270 tons, these vessels can reach a top speed of 25 knots, thanks to their twin MTU 16V M70 diesel engines. This propulsion system also provides a range of 3,000 nautical miles at a cruising speed of 12 knots, allowing for extended patrol missions without the need for frequent refueling.

Key Features Include:

1. Armament: The primary weapon of the Armidale-class is a Rafael Typhoon 25mm stabilized naval gun, which is remotely operated and provides a high degree of accuracy and firepower. Additionally, each vessel is equipped with two 12.7mm machine guns for close-range defense.

 2. Crew and Accommodation: Designed for a crew of 21, these boats also have the capacity to carry up to 29 personnel when required. The accommodation is built to be comfortable for extended missions, with modern amenities to support the crew during long deployments.

3. Advanced Navigation and Communication Systems: The Armidale-class boats are fitted with state-of-the-art navigation and communication equipment, ensuring they can operate effectively in all weather conditions and maintain contact with other vessels and command centers.

4. Seakeeping and Versatility: The hull design and stabilization systems ensure good seakeeping capabilities, making the boats capable of operating in rough sea conditions. This versatility allows them to perform a range of missions, including surveillance, interception, boarding operations, and search and rescue.

Operational History

Since their commissioning, Armidale-class patrol boats have played a critical role in Australia’s maritime security operations. One of their primary missions has been Operation Resolute, the Australian Defence Force’s (ADF) contribution to protecting Australia’s EEZ and offshore assets. This operation involves a range of tasks, including intercepting and deterring illegal activities such as people smuggling, illegal fishing, and drug trafficking.

The Armidale-class boats have been particularly effective in intercepting vessels attempting to bring unauthorized immigrants to Australia. Their speed and maneuverability make them well-suited for rapid response and interception missions, while their advanced communication systems allow them to coordinate effectively with aerial surveillance and other maritime assets.

In addition to border protection, these patrol boats have also been involved in humanitarian missions and disaster response. Their ability to operate in diverse and challenging conditions makes them valuable assets in providing assistance during natural disasters, both within Australia and in the broader region.

List of Armidale-class Patrol Boats

There are 14 vessels in the Armidale-class, each named after a regional Australian city or town. Here is the complete list:

1. HMAS Armidale (ACPB 83): The lead ship of the class, commissioned in June 2005.

2. HMAS Larrakia (ACPB 84): Commissioned in February 2006, named after the indigenous Larrakia people.

3. HMAS Bathurst (ACPB 85): Commissioned in February 2006, named after the city of Bathurst in New South Wales.

4. HMAS Albany (ACPB 86): Commissioned in July 2006, named after the city of Albany in Western Australia.

5. HMAS Pirie (ACPB 87): Commissioned in July 2006, named after the city of Port Pirie in South Australia.

6. HMAS Maitland (ACPB 88): Commissioned in September 2006, named after the city of Maitland in New South Wales.

7. HMAS Ararat (ACPB 89): Commissioned in December 2006, named after the city of Ararat in Victoria.

8. HMAS Broome (ACPB 90): Commissioned in February 2007, named after the town of Broome in Western Australia.

9. HMAS Bundaberg (ACPB 91): Commissioned in March 2007, named after the city of Bundaberg in Queensland.

10. HMAS Wollongong (ACPB 92): Commissioned in June 2007, named after the city of Wollongong in New South Wales.

11. HMAS Childers (ACPB 93): Commissioned in June 2007, named after the town of Childers in Queensland.

12. HMAS Launceston (ACPB 94): Commissioned in September 2007, named after the city of Launceston in Tasmania.

13. HMAS Maryborough (ACPB 95): Commissioned in October 2007, named after the city of Maryborough in Queensland.

14. HMAS Glenelg (ACPB 96): Commissioned in February 2008, named after the suburb of Glenelg in South Australia.

The Armidale-class patrol boats have served the Royal Australian Navy with distinction. Their role in protecting Australia’s maritime borders, deterring illegal activities, and providing humanitarian assistance has been invaluable. As they begin to be phased out in favor of the more advanced Arafura-class OPVs, the legacy of the Armidale-class will continue to be remembered as a vital chapter in the history of Australian maritime defense.

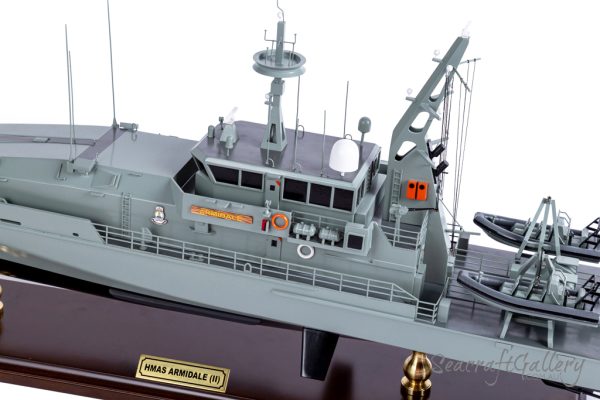

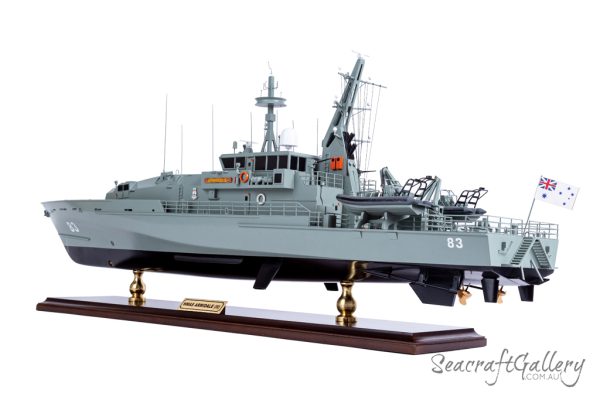

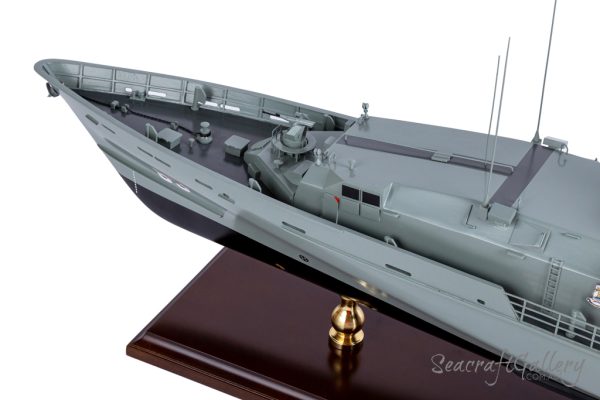

Our company takes pride in crafting highly detailed scale models of the Armidale-class patrol boats. These models are meticulously handcrafted from high-quality materials, capturing the essence of these iconic vessels. Perfect for collectors and naval enthusiasts, our models offer a tangible connection to Australia’s maritime heritage. Visit our warship models to explore our collection and bring a piece of naval history into your home.
